OMNI WELL INDUSTRIAL (WUHAN) CO., LTD

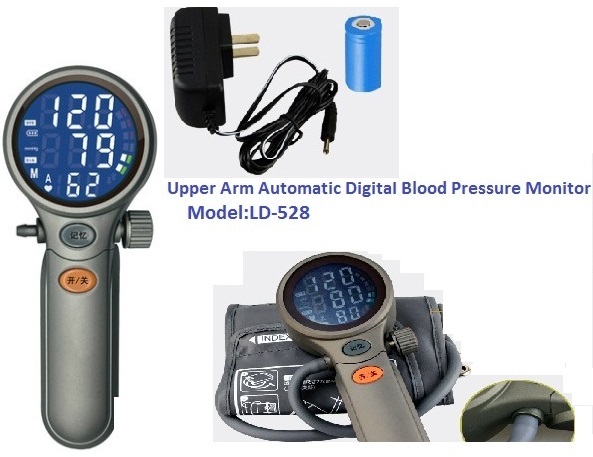

LD-528 Automatic Arm Blood Pressure Monitor
Description:
Market Positioning
1) Small and exquisite, easy to carry
2) Middle and top end market
3) Suitable for home and hospital use
Features
1) LCD backlight display
2) One-hand use comfortable
3) 90 sets of memory
4) WHO blood pressure classification indication
5) IHB detectable
6) Automatic power off after 3 minutes of no operation
7) Error and low battery indication
8) One-touch operation to record the measurement result
Specs
Measuring Method | Oscillometeric |
Measuring Range | 40 to 260 mmHg (blood pressure) |
Measuring Accuracy | ±3 mmHg for static pressure |
Inflation | Automatic by the pump |
Rapid Deflation | Automatic electronic valve |
Power Source | 1 ×"123A"x 3.7V Rechargeable Li-ion battery |
Memory | 90 sets of memory |
Operation Temperature and Humidity | +10°C to +40°C, 85% and below |
Storage Temperature and Humidity | - 20°C to +50°C 85% and below |
Upper Arm Circumference | Applicable for arm circumference 22-32cm(standard cuff); |
Monitor Size | 174mm×70.5mm×40mm |
Weight | Approximately 210g without batteries |
Complete Kit | Main body, standard cuff, Storage case, large adult cuff (optional), rechargeable Li-ion battery, adapter, instruction manual, warranty card. |
Quality Assurance
We claim 2 years warranty since the date of purchase.
The 24 months warranty excludes the wrist cuff. The wrist cuff is warranted for 12 months.
The quality system passed ISO 13485:2003 and the produce passed CE 0123. More than 8000 subjects are tested carefully during debugging the core algorithm.

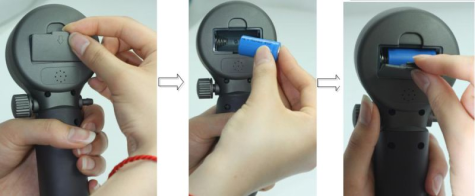

Battery Installation
Standard Configuration:
1. Main unit: 1 PCS
2. Cuff: 1PCS
3. Nylon Storage Case: 1 PCS
4. Rechargeable Li-ion Battery: 1 PCS
5. Adapter: 1 PCS
6. Instruction Manual: 1 PCS
7. Warranty Card: 1 PCS
8. Gift Box: 1 PCS
Optional Configuration:
Large Adult Cuff: 1 PCS
