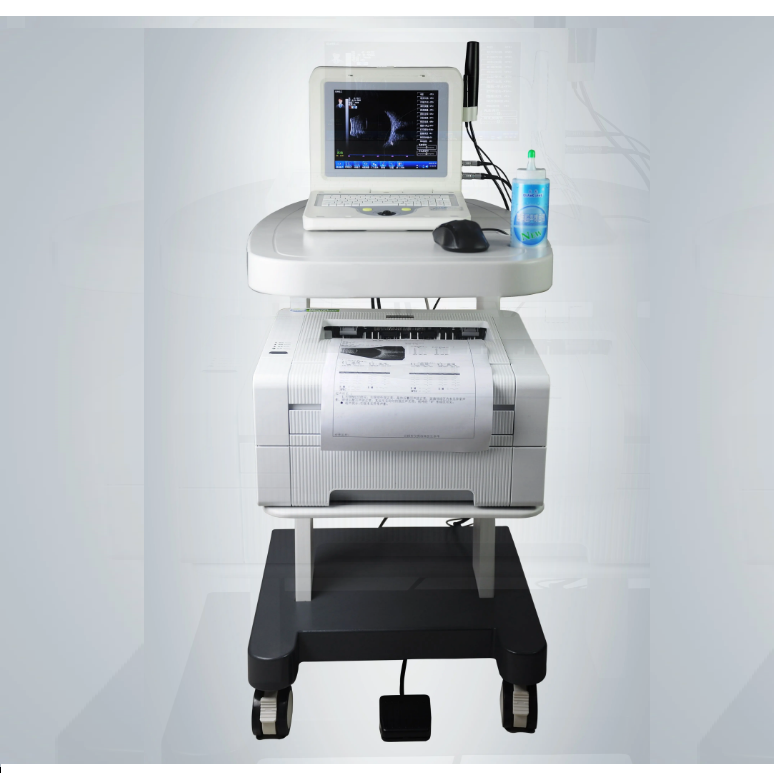

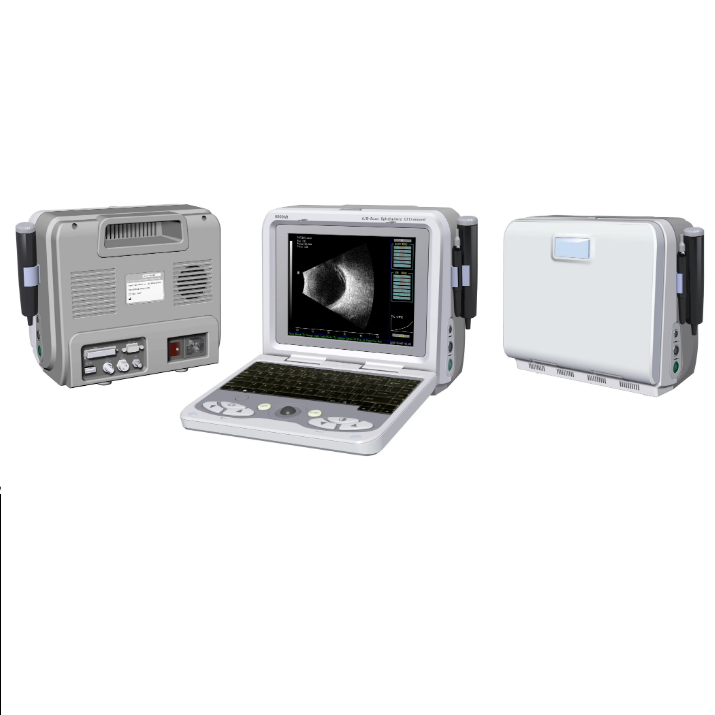

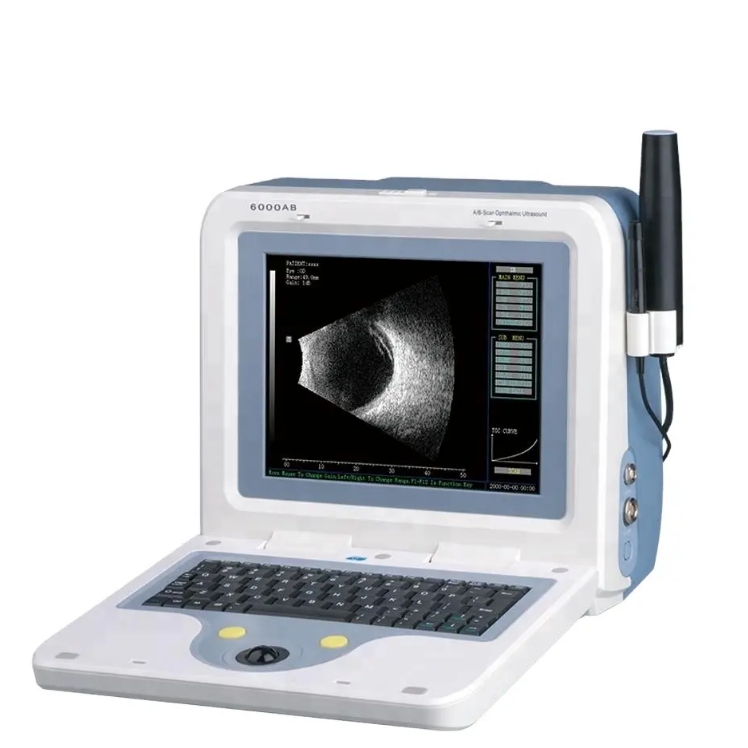

OW-6000AB Ophthalmic AB Scan

Description:

Features

  • Built-in Workstation

  • Detailed Resolution, Color TFT Display

  • Multiple Display and Continuous Zoom

  • Turn-up Keyboard, Fully Portable

  • Real Time Images,Cine-Loop

  • User and Patient lnformation Entry

  • Mass lmages Storage

  • Document Management, Search and Statistic

  • Trackball for Easy Measurement and Operation

  • Clinical Reports With Images Print Out

  • Custom Velocity Settings

Performance specifications


Display:

8.4" Color TFT (Diagonal)

Resolution:

800×600

Image Output(optional):



Video Printer/Laser Printer / Color Inkjet Printer / Workstation

Report Print Out:

Patients Information,

Clinical Situation Description of Images

External VGA monitor

A-SCAN


Frequency:

10MHz Fixation LED

Clinical Accuracy:



0.04mm

Minimum Indicated Unit:

0.01mm

Measuring Range (AL):

0-40mm

Measuring Mode:

Immersion/Contact

Measuring Value:

Cornea Thickness (immersion Mode), Anterior Chamber Depth, Lens Thickness, Vitreous Length ,Axial Length

Measuring Method:

Manual/Automatic (for Phakic, Aphakic, Cataract, Pseudophakic)

B-SCAN


Frequency:

10MHz

Scanning Method:

Digital High Resolution Sector Scanning

Scanning Scope:

53 degrees

Gain Control:

22-99 dB

Resolution:

Lateral 0.4mm, Axial 0.2mm

Detecting Depth:

0-60mm

Display Method:

B, B+A,B+B,B+B+B+B,A

Zoom:

6 steps selectable

Gray Scale:

256 Levels

Color:

15 color codes

Cineloop:

12 sec/128 images, single or circle

Physical dimension & weight


Dimensions:

240 H× 255 W×160 D mm

Weight:

3.0kg (6.6lbs)

Operating environment


Power Supply:

AC100-240V 50/60Hz 80VA Max

Temperature:

10-35°C

Humidity:

10 - 80%
