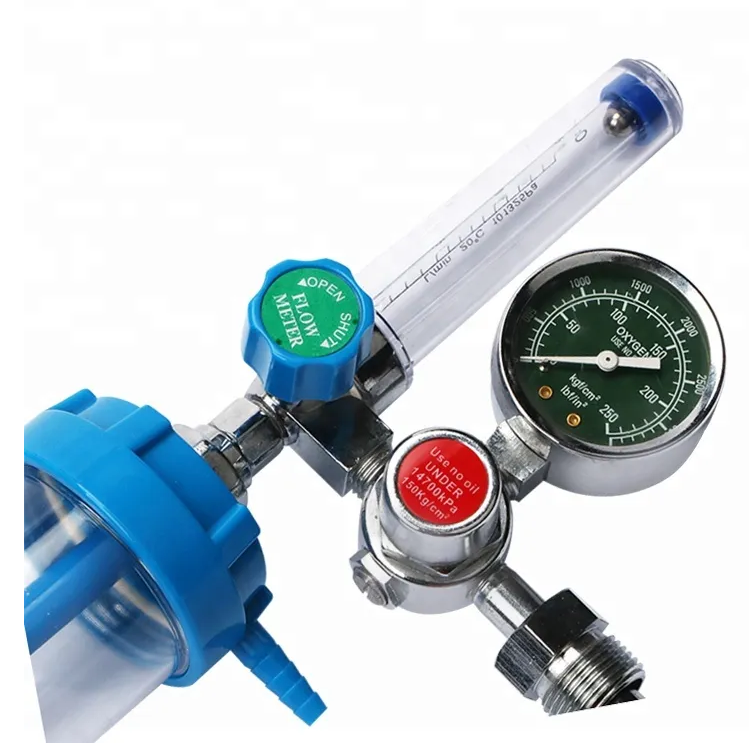

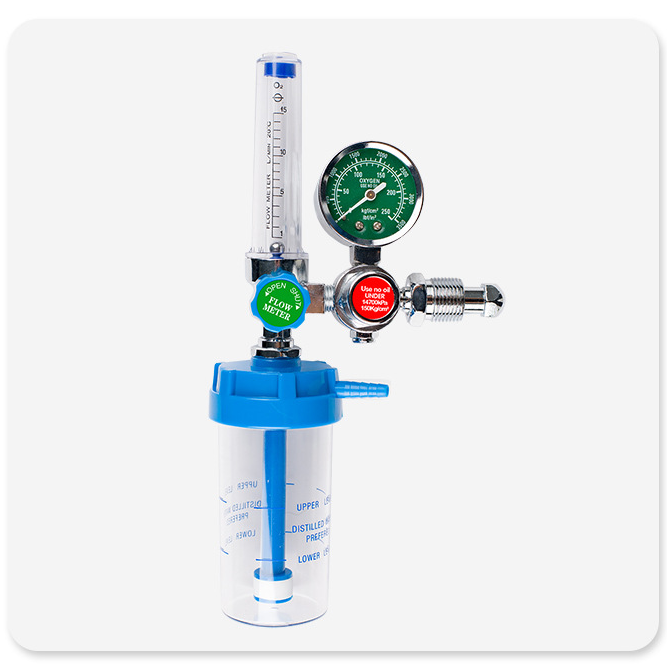

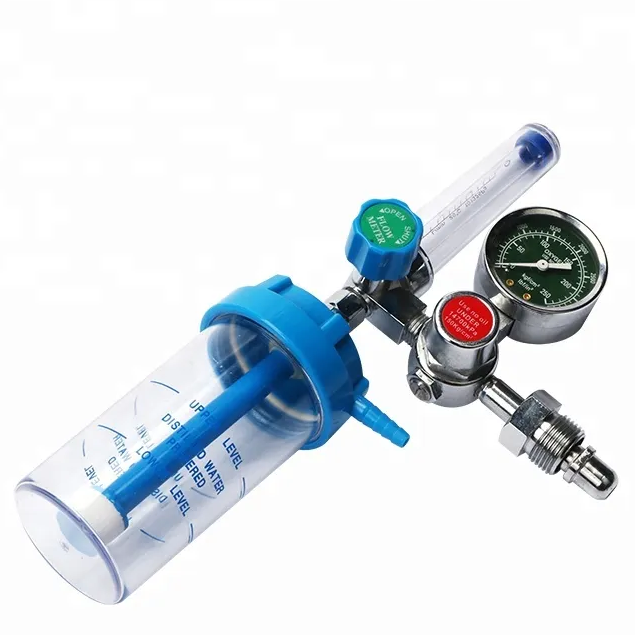

YR-88 Oxygen Regulator

Intended use

Mainly used in the oxygen supply system of medical centers, it is a device for emergency oxygen supply and oxygen inhalation control for medical units, scientific research institutions, industrial and mining facilities, etc. Oxygen inhalers have precise flow rates, are easy to use, and are safe to use. It is an essential equipment for oxygen therapy in emergency rooms and wards of hospitals.

Working principle

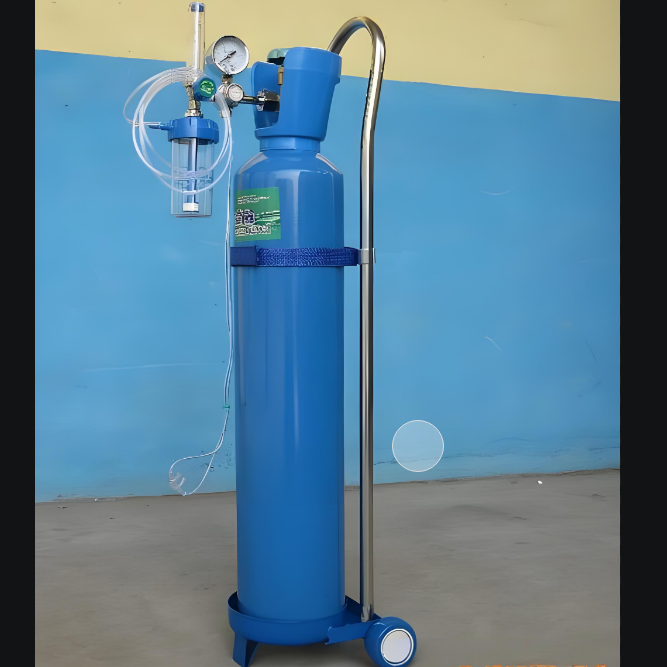

The function of an oxygen inhaler is to provide a continuous constant pressure and flow of oxygen for patients to use. The bottle inserted oxygen inhaler uses its built-in pressure reducing device to reduce the high pressure inside the oxygen cylinder (15Mpa when full) to a low pressure suitable for human use (0.2~0.2Mpa), and then outputs it to the human body after being moistened with water. The wall inserted oxygen inhaler, with an input pressure of 0.2~0.4Mpa, does not require further pressure reduction and can be directly output to the patient body.

Features

Poly-carbonate outer and inner tubes for maximum durability and service life
Dual-sided scale easy to read dual-sided scale covers 180 degrees viewing angles
Black pressure cmpensated and calibrated at 50*ps
Anti-Burst
Allows steady adjustment of flow-rate
Pressure relief valve on cover to vent excess pressure
Provide different types of adapters
Back pressure compensated flow meters

Specs:

1. Oxygen flow range:1~10L/Min 1~15L/Min

2. Pressure reducing range:2.0~3.0kg

3. Relief valve Pressure range:(3.5kg±0.5kg)
