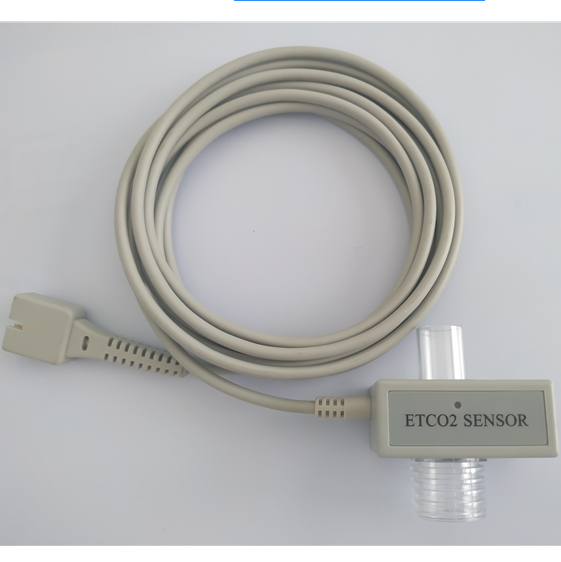

C500 Mainstream ETCO2 Module
Description:
The Mainstream CO2 Sensor C500 is designed specifically for mainstream measurements using sophisticated infrared absorption spectroscopy to make EtCO2 monitoring simple and accurate, allowing for flexibility to monitor all patient (Adult/paediatric and infant ) in all environments.
With mainstream, measurements are taken directly at the patients' airway, so response is faster and there is less chance of erroneous, artifact data. The analyzer portion of the sensor cannot be contaminated with patient secretions, and there are no disposable components to C500. And the maintenance requirements and overall cost-of-ownership are minimized. Our exclusive family of airway adapters are easy to use and durable enough even for long-term intubated patients.
The Mainstream CO2 Sensor C500 can be integrated with other components, software packages and accessories, making it easy for you to configure your patient monitoring systems with state-of-the-art respiratory management and analysis technology.
Key features:
• compatible with Respironics CapnoStat5 or Phasein’s IRMA
• Warm-up time: ≤3 seconds full specification; Direct measurement without time delay
• Advanced technology of condensation compensation
• Long-life infrared detector
• No disposable accessory and airway adaptor can be used up to 100 times.
Specs:
Transducer Type | Mainstream |
Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts. |
Initialization Time | Capnogram displayed in less than 3 seconds, |
at an ambient temperature of 25℃, full specifications within 30 seconds | |
CO2 Measurement Range | 0 to 152 mmHg, 0 to 20.0%, 0 to 20 kPa |
CO2 Calculation Method | BTPS (Body Temperature Pressure Saturated) |
CO2 Rise Time (10 - 90% of step change of final CO2 value) | |
8 ms - for detector | |
50 ms - for system | |
CO2 Resolution | 0.01 mmHg 0 to 69 mmHg, 0.02 mmHg 70 to 150 mmHg |
CO2 Accuracy * | 0 - 40 mmHg, ±2 mmHg |
41 - 70 mmHg, ±5% of reading | |
71 - 100 mmHg, ±8% of reading | |
101 - 150 mmHg, ±10% of reading | |
* NOTE: Temperature at 35 ℃. | |
CO2 Stability | Short Term Drift: Drift over four hours shall not exceed 2 mmHg maximum. |
Long Term Drift: Accuracy specification will be maintained over a 120 hour period. | |
CO2 Noise | RMS noise of the sensor shall be less than or equal to 0.25 mmHg at 7.5% CO2 |
Sampling Rate | 100 Hz |
Respiration Rate Range | 2 to 150 breaths per minute (BPM) |
Respiration Rate Accuracy | ±1 breath |
Calibration | No routine user calibration required. An airway adapter zero is required when insert an airway adapter. |
Safety lock-outs: | • System does not allow adapter zero for 20 seconds after the last breath is detected. |
• System does not allow adapter zero if temperature is not stable. | |
• System does not allow adapter zero if there is CO2 gas in the airway adapter. | |
ETCO2 Calculation | Method: Peak of the expired CO2 waveform |
Selections: 1 breath, 10 second, 20 second | |
Note: the minimum reported differential value between the baseline and the CO2 value shall be 5 mmHg. | |
Inspired CO2 Measurement | Range: 3 to 50 mmHg |
Method: Lowest reading of the CO2 waveform in the previous 20 seconds | |
Compensations (Host Controlled) | |
Compensations for: Expired O2 , balance gas (N2 , N2 O, He) and anesthetic agents | |
Uses gas compensation information and barometric pressure to correct the raw carbon dioxide value | |
O2 Compensation | Range: 0 to 100% |
Resolution: 1% | |
Default: 16% | |
N2O Compensation | Range: 0 (off) or 1 (on) |
Default: Off | |
Note: If ON, the balance of the mixture is O2 | |
He Compensation | Range: 0 (off) or 1 (on) |
Default: Off | |
Note: If ON, the balance of the mixture is O2 | |
Total Pressure | Range: 400-850 mmHg. |
Total pressure = Barometric plus Airway pressure. Barometric pressure provided by host. | |
Airway Adapter Type | Pediatric/Adult Reusable Airway Adapter, Infant/Pediatric Reusable Airway Adapter |
Input Voltage | 5.00 Volts (± 5%) |
Power Consumption | 900mW (typical) |
Warm-up Time | 3 seconds |
Interface | Highly configurable serial digital interface(TTL/RS232), CO2 waveform data, Breath Detect Algorithm data |
Temperature and Humidity | Operating: 0 to 55ºC, 10 to 90% RH, non-condensing |
Storage: -40 to 70ºC, <90% RH, non-condensing | |
Dimensions | 50mm*22mm*36mm |
Weight | < 95 grams, only the module |
Interconnection | Standard Lemo Redel 8-pin plastic Material PSU |
Pin out:1. VA 5.0V; 2. Shield Shield; 3. DGND Digital return; 4. VA 5.0V; 5. TxD Serial data from the Module; | |
6. RxD Serial data from Host; 7. AGND Analog return; 8. NC |
